Description

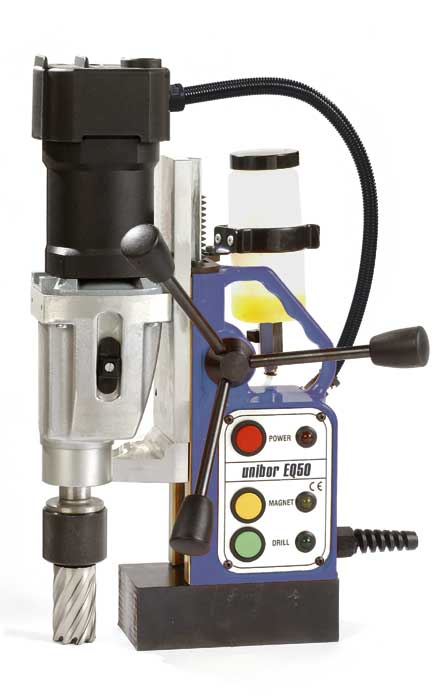

Unibor Magnetic Drill Press Model EQ50

Features:
• Powerful new motor
• Automatic lubrication system
• Electronic controls with safety interlocks and audible warnings
• New patented QuickHitch arbor. Change cutters in less than 10 seconds
• Cuts up to 1–3/8 inch diameter holes up to 2 inches deep
• High power magnet for maximum stability
• Available with reverse
• Includes: carrying case, hex keys, safety strap, safety guard, and cutting oil

Technical Specifications:
Power : 1.5 hp
Speed (No Load): 280/500 rpm
Height: 15-1/2″ (down position)
Weight: 40 lbs
Magnet Dimensions: 7-1/8″ x 4″ x 2-3/8″
Magnet Adhesion: 2000 lbs
Stroke: 6-5/8″
Morse taper: 2
Motor: 960 watts, 120V AC, 8 amps
Replacement Arbor: QH-210
Available Adapter for Twist Drilling: UP 252, 2 morse taper to 5/8″ chuck adapter – UP 054 5/8″ chuck and key
Cutting Thickness: 1/2″ – 2″

CAUTION: Always use a safety chain when using any Unibor mag drill. It is also advisable to use safety glasses when operating any tool of this nature.

Will Ship Worldwide
