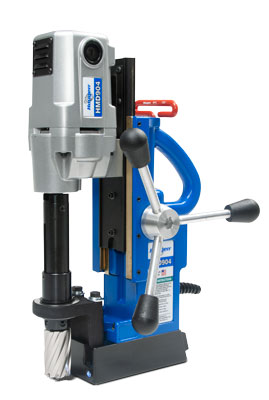

Hougen HMD904S Portable Magnetic Drill 1-1/2″ Swivel Base 0904103
FEATURES:
- Hougen Part# 0904103
- The mag drill of choice for fabrication. Lightweight; compact; powerful;& versatile.
- Now better than ever… completely Redesigned with More Features.
- Large 1-1/2″ x 2″ capacity
- Can work with twist drill bits – Requires Slot Adapter 08186 & 1/2″ Chuck 10731
- NEW – Pilot light – for low light or no light conditions
- NEW -Two stage magnet – 30% power increase when motor is turned on
- NEW – Slot Drive arbor for more accuracy and quicker change out of accessories
- NEW – Housing – stronger stiffer; more ergonomic
- Positive slug ejection
- Many accessories are available for a portable machine shop including: drill chucks; tapping; countersink; and more…
- Feed handles quickly change from side to side
- Lift detector safety system
- Rear mounted controls
- Carrying case included
- One year warranty
- Swivel Base adds even greater versatility
Swivel Base adds even greater versatility:
- Precisely line up your pilot with the holes center location
- One stroke lock and unlock handle
- Great for horizontal; overhead; tight areas; and getting out over another piece of steel
- Patented
Specifications:
| Electrical System | 115V; 50/60 Hz – 9A; 1035W | ||
|---|---|---|---|
| 230V; 50/60 Hz – 4.5A; 1035W | |||
| Motor | 8A (115V); 4 (230V); 450 RPM | ||
| Diameter | 7/16″- 1-1/2″ (12mm – 38mm) | ||
| Depth | 2″ (50mm) | ||
| Cutter/Mount | in12;000-Seriesin & Copperhead & Fusion cutters; 3/4″ shank | ||
| Dimensions | 19-5/8″ H x 7-3/4″ W x 11-5/8″ L | ||
| (499mm H x 197mm W x 295mm L) | |||
| Swivel Area | 1-1/8″ W x 1-3/8″ L | ||
| (28.5mm H x 34.9mm W) | |||
| Magnet | Base | 3-1/8″ W x 6-9/16″ L (79mm W x 167mm L) | |
| 1″ Plate (25mm) | Dead Lift 1750 lb. (794 kg) | Drillpoint Breakaway 995 lb. (452 kg) | |
| 3/8″ Plate (9.5mm) | 1310 lb. (594 kg) | 710 lb. (322 kg) | |
| Magnet (Swivel) | 1″ Plate (25mm) | Dead Lift 1340 lb. (608 kg) | Drillpoint Breakaway For. 695 lb. (315 kg) Back 835 lb. (379 kg) |
| 3/8″ Plate (9.5mm) | 1015 lb. (460 kg) | For. 503 lb. (228 kg) Back 605 (274 kg) | |
| Weight | 28.9 lb. (13.1 kg) Shipping 43 lb (19.5 kg) | ||
| Weight (Swivel) | 31.9 lb. (14.5 kg) Shipping 45 lb (20.4 kg) | ||
| Shipping Dimensions | 18 x 20 x 9″ (45.72 x 50.8 x 22.9 cm) | ||
